Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

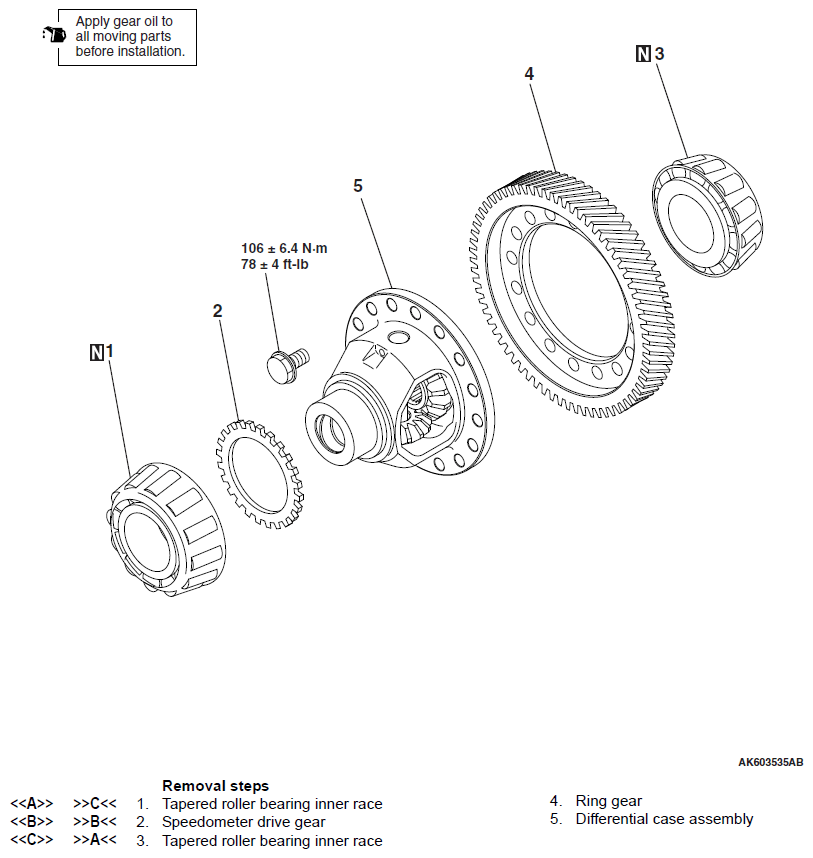

Fig 1: Disassembling/Assembling Differential Components With Torque Specification

G09625717

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998917: Bearing remover
MB991395: Crankshaft front oil seal installer
MB990810: Side bearing puller
MD999566: Craw
MD998812: Installer cap
MB992150: Oil seal installer
MB990891: Rear suspension bushing base
MB992138: Bearing installer
