>> C << Snap Ring Installation
WARNING: This page is about a different variant/trim than selected.

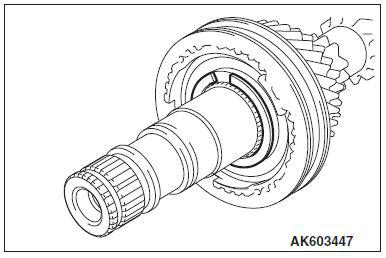

Select a snap ring that allows distance of the thrust crevice of synchronizer hub No. 2 to fall within the standard value range.
Standard value: 0 - 0.1 mm (0 - 0.0039 inch)
NOTE:
Try on snap rings in the decreasing order of thickness, and install the first one that fits into the input shaft.
