>> B << Synchronizer Ring Set No. 1 (Synchronizer Outer Ring No. 1, Synchronizer Middle Ring No. 1, Synchronizer Inner Ring No. 1) Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: The rings of the synchronizer ring set No. 1 and No. 2 are dedicated to the 1st and 2nd gears. Be sure to install the right ring set to the right gear.

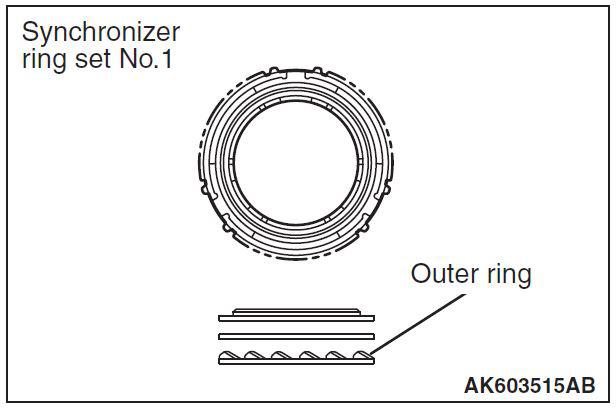

  1. Make sure that the synchronizer outer ring of the synchronizer ring set No. 1 is as shown in illustration.
    Fig 1: Identifying Synchronizer Outer Ring
    G05375685Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

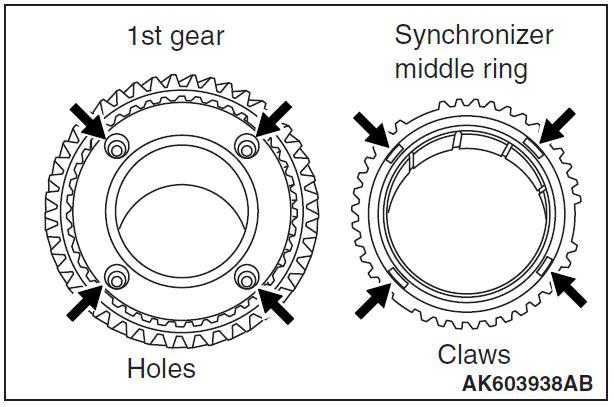

  2. Install the synchronizer ring set No. 1 aligning the claws of the synchronizer middle ring to the positioning holes in the 1st gear.
    NOTE: Apply gear oil to the sufficiently on the sliding surface
    Fig 2: Installing Synchronizer Ring Set No. 1
    G05375686Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
