<< C >> Reverse Gear, Synchronizer Hub No. 1 And 1ST Gear Removal

WARNING: This page is about a different variant/trim than selected.

Using special tool MD998917, support the 1st gear and remove the 1st gear, reverse gear and synchronizer hub No. 1.

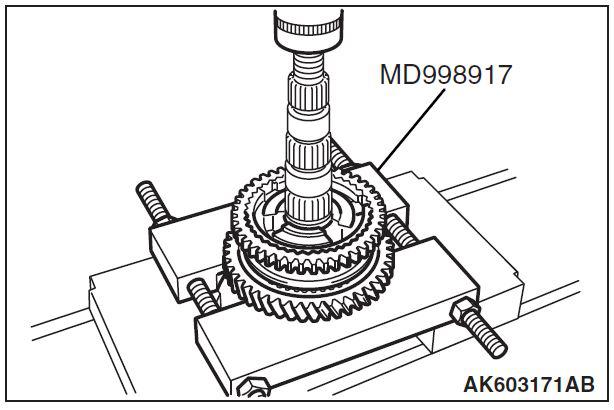

Fig 1: Removing 1st Gear, Reverse Gear And Synchronizer Hub No. 1 Using Special Tool MD998917

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
