>> E << 5TH Drive Gear Installation

WARNING: This page is about a different variant/trim than selected.

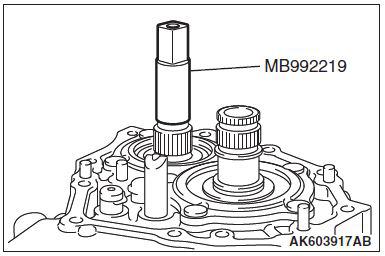

Install special tool MB992219 until it hits the end face of the output shaft.

Fig 1: Installing Special Tool MB992219 To Output Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

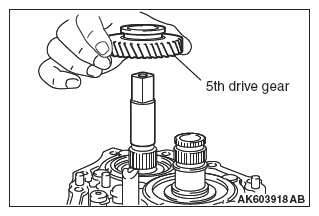

Install the 5th drive gear.

Fig 2: Installing 5th Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set special tool MB992216 on top of the 5th drive gear.

Fig 3: Installing Special Tool MB992216 On Top Of 5th Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the center bolt that is included in the set of special tool MB992216 as shown in illustration.

Fig 4: Installing Center Bolt In Set Of Special Tool MB992216
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

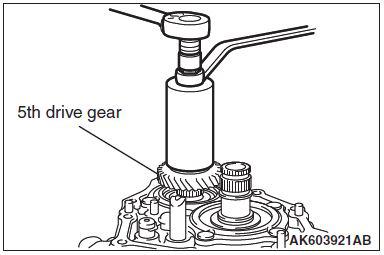

Press-fit the 5th drive gear as shown in illustration.

Fig 5: Pressing 5th Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
