>> H << Shaft Snap Ring Installation

WARNING: This page is about a different variant/trim than selected.

Select a shaft snap ring that allows distance of the thrust crevice of synchronizer hub No. 3 to fall within the standard value range.

Standard value: 0 - 0.1 mm (0 - 0.004 in.)

NOTE: Try on snap rings in the decreasing order of thickness, and install the first one that fits into the hub.

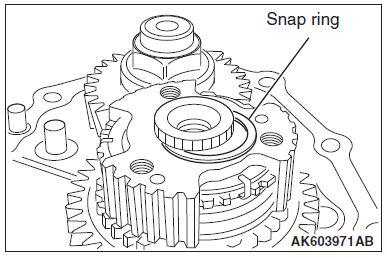

Fig 1: Identifying Transaxle Shaft Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
