>> I << Synchronizer Sleeve No. 3 Installation

WARNING: This page is about a different variant/trim than selected.

Put the synchronizer sleeve No. 3 and gear shaft fork assembly No. 3 together, then install the synchronizer sleeve No. 3 in the illustrated direction.

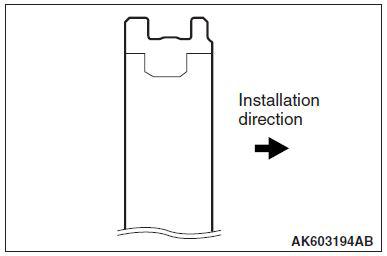

Fig 1: Installing Synchronizer Sleeve No. 3
G05375664Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
