>> L << Control Shift Retainer Gasket Installation

WARNING: This page is about a different variant/trim than selected.

Install the control shift retainer gasket to the control shaft cover with the projection of the gasket in the illustrated position.

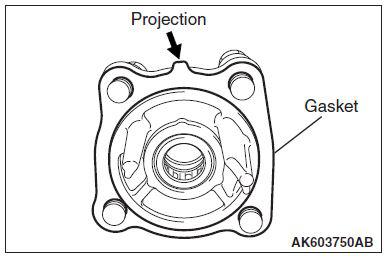

Fig 1: Locating Control Shift Retainer Gasket Projection
G05375667Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
