<< A >> Selecting Bell Crank Assembly And Control Bell Crank Dust Cover Removal

WARNING: This page is about a different variant/trim than selected.

Remove the fixing nuts shown in illustration, then separate the control shift lever from the selecting bell crank assembly and control bell crank dust cover.

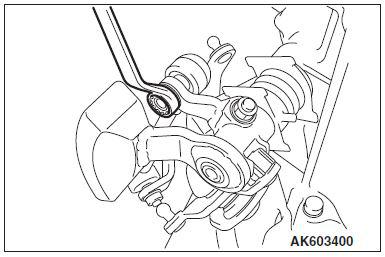

Fig 1: Separating Control Shift Lever From Selecting Bell Crank Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
