<< B >> Synchronizer Hub No. 3 Removal

WARNING: This page is about a different variant/trim than selected.

Using special tool MB992221, remove the synchronizer hub No. 3.

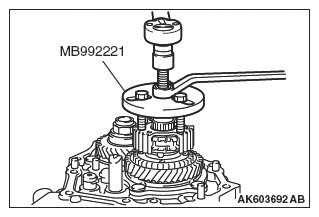

Fig 1: Removing Synchronizer Hub Using Special Tool MB992221
G06672092Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
