DTC B2464: The sticking of meter information switch: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.

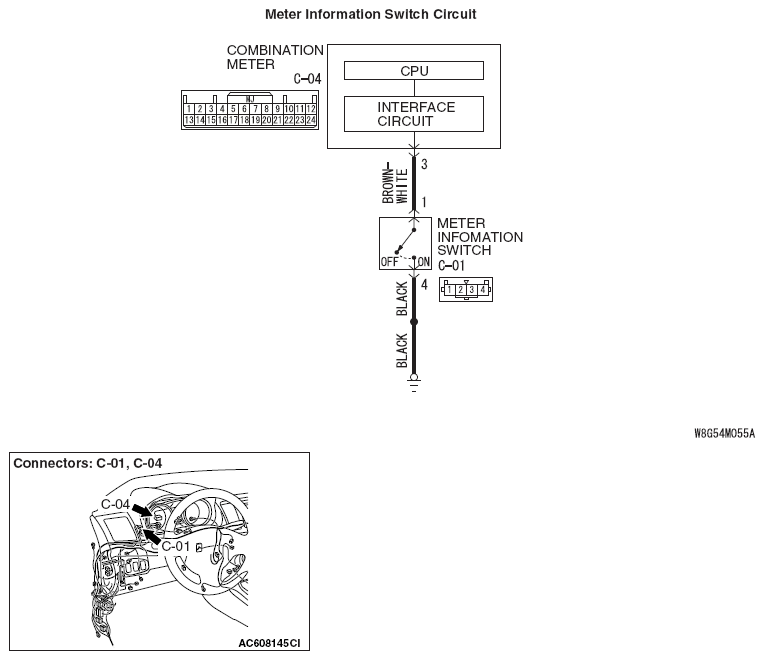

Fig 1: Meter Information Switch Circuit Diagram
G09629848Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
