Fuel Level Sensor Float Height

WARNING: This page is about a different variant/trim than selected.

Remove the fuel pump module (Refer to FUEL TANK < 2.0L ENGINE NON-TURBO, 2.4L ENGINE (FWD) > < 2.0 L engine, 2.4 L engine > or < RALLIART > ).

When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.

FLOAT POSITION AND HEIGHT (FWD)

Float position	Float height {mm (in)}
Stopper position "F" (height A)	181.5 (7.1)
Stopper position "E" (height B)	26.7 (1.0)

FLOAT POSITION AND HEIGHT (AWD)

Float position	Float height {mm (in)}
Float position	Main	Sub
Stopper position "F" (height A)	140.9 (5.5)	14.2 ± 3.0 (0.6 ± 0.1)
Stopper position "E" (height B)	39.1 (1.5)	179.3 ± 3.0 (7.1 ± 0.1)

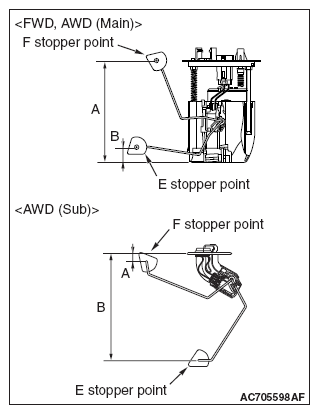

Fig 1: Inspecting Stopper Positions F (Height A) And E (Height B)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
