5. Periodic Reminder Schedule Set

WARNING: This page is about a different variant/trim than selected.

The service reminder schedule can be changed.

NOTE: In addition to the operation of the scan tool MB991958, the schedule can be changed by operating the meter information switch on the combination meter. Refer to HOW TO SET THE SCHEDULE .

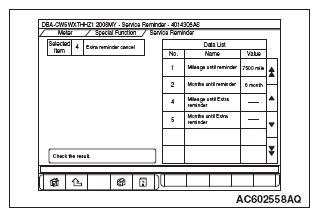

Fig 1: Display - Temporary Warning Period (No. 4 And 5 In Data List) Has Been Cancelled

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

On the "Service Reminder" screen, select "5 Periodic reminder schedule set."
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been set to "NAS 1-1."

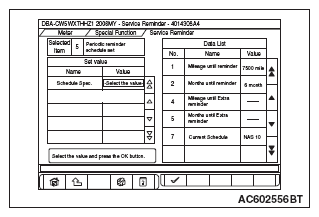

Fig 2: Display - Current Schedule (No. 7 In Data List) Has Been Set To "Nas 1-1"
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the schedule to be changed from "Set value."
Press the "OK" button.

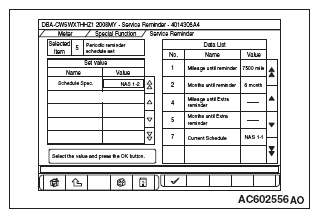

Fig 3: Setting Schedule
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The schedule is changed.
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been changed to "NAS 1-2."
