Inspection Procedure 1: Power supply circuit check: Notes

WARNING: This page is about a different variant/trim than selected.

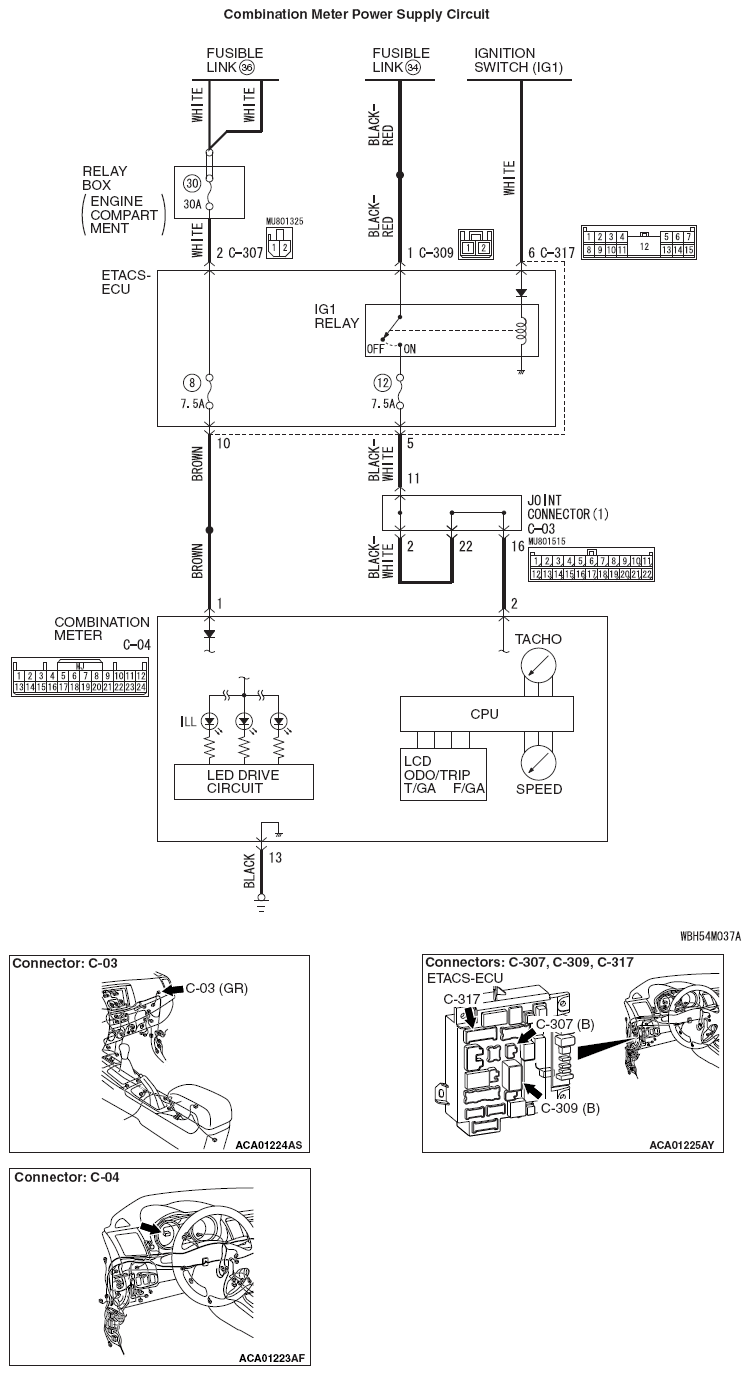

Fig 1: Combination Meter Power Supply Circuit Diagram
G09629860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
