Removal And Installation

WARNING: This page is about a different variant/trim than selected.
WARNING: For removal and installation of the passenger's side air bag module always observe the service procedures described in Supplemental Restraint System (SRS) article. Refer to SERVICE PRECAUTIONS , PASSENGER'S (FRONT) AIR BAG MODULE , DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > , DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > .

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the information of "Removal and Installation" and "Disassembly and Assembly."

Name Symbol Size (D x L) mm Color Shape
Tapping screw a 5x12 -
G09629107
b 5x16 -
c 5x12 -
G09629108
Bolt with washer d 5x20 -
G09629109
e 6x16 -
G09629110
D: Thread diameter, L: Effective thread length
CAUTION:

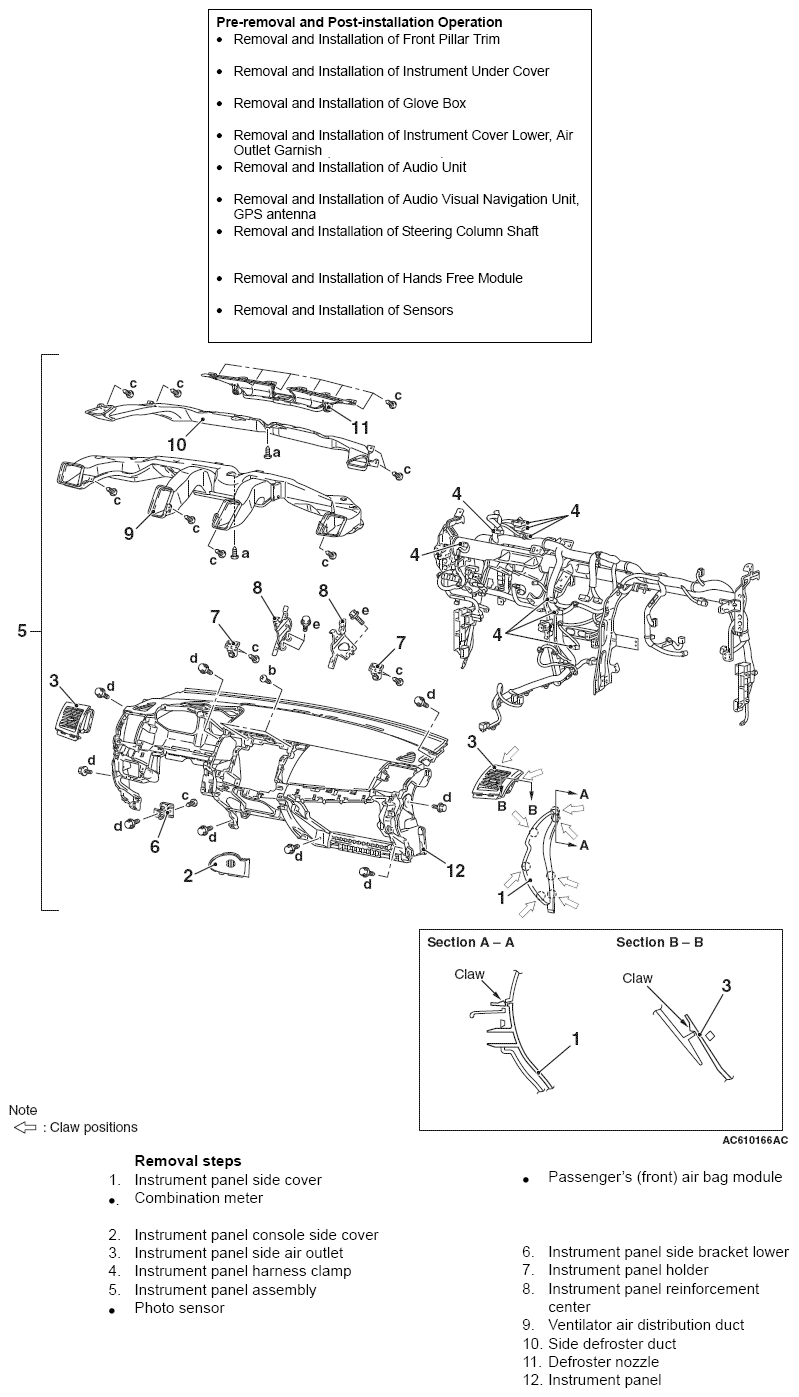

Fig 1: Exploded View Of Instrument Panel Assembly
G09629111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
