<< B >> Head Restraint Guide Removal

WARNING: This page is about a different variant/trim than selected.

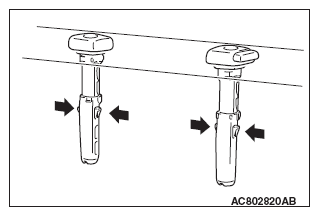

Peel of the front seatback cover and pad to access the head-restraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown in illustration.

Fig 1: Pushing Tabs
G09629148Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
