Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS , SIDE-AIRBAG MODULE(S) < EXCEPT RALLIART > and SIDE-AIRBAG MODULE(S) < RALLIART > .

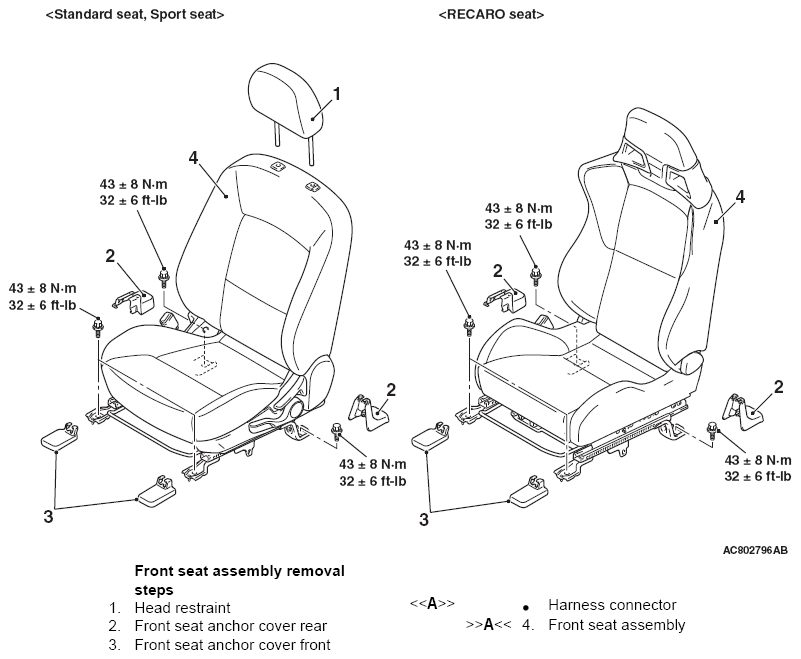

Fig 1: Exploded View Of Front Seat Assembly With Torque Specifications
G09629137Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
