<< A >> HEADRESTRAINT Guide Removal
WARNING: This page is about a different variant/trim than selected.

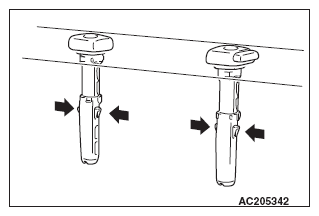

Peel off the rear seatback cover and pad to access the head-restraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown in illustration.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
