Audio Adapter Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the audio adapter. (Refer to AUDIO AND VIDEO ADAPTOR  )
  2. Check the continuity between terminals of audio adapter and pin jack.
    The connecting position of pin jack side circuit tester Terminal number Measurement value
    1 5 Continuity exists (2 ohms or less)
    2 4
    3 5
    4 6

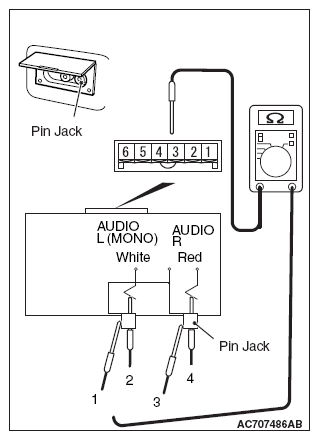

    Fig 1: Checking Continuity Between Terminals Of Audio Adapter And Pin Jack
    G09630406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
