GPS antenna

WARNING: This page is about a different variant/trim than selected.

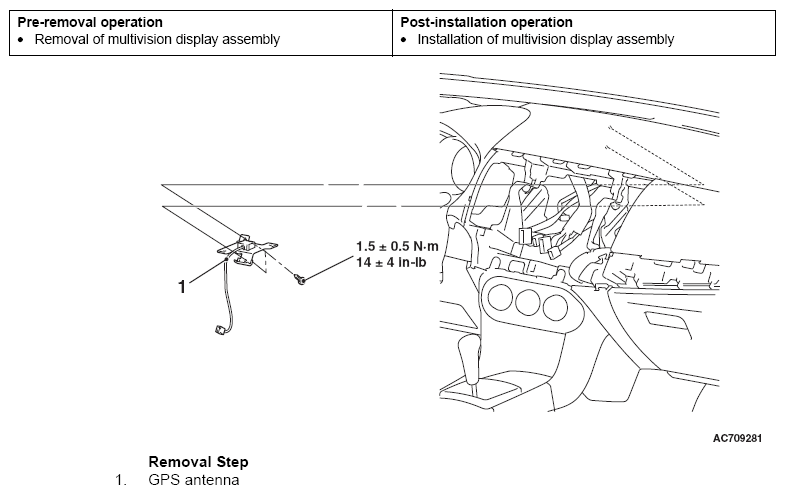

Fig 1: Removing/Installing GPS Antenna Components With Torque Specifications
G09630403Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
