>> A << Fuel Pump Module Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- When installing the fuel pump module into the fuel tank from the service hole, be careful not to damage the gauge unit and the float of the fuel pump module. In addition, be careful that the float does not catch the fuel tank suction hose in the fuel tank.
- When installing the fuel pump module into the fuel tank from the service hole, check that the moving part of the gauge works smoothly.

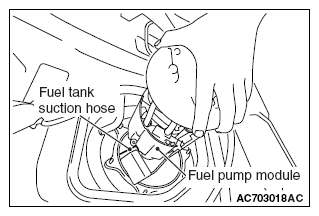

- While inserting the fuel pump module into the fuel tank from the service hole, connect the fuel tank suction hose, and install the fuel pump module to the fuel tank.
