>> C << Fuel Main Pipe Connection

WARNING: This page is about a different variant/trim than selected.

Before the installation, push up the retainer of the fuel main pipe.

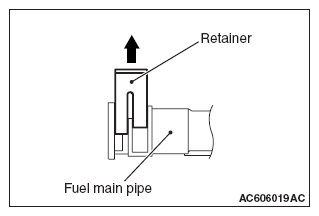

Fig 1: Identifying Retainer Of Fuel Main Pipe
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect the connector of fuel main pipe to the fuel pump module securely and push down the retainer of the connector to lock it firmly.
After the installation, slightly pull the fuel main pipe to check that it is connected securely. At this time, also check that there is approximately 1 mm (0.04 inch) play.

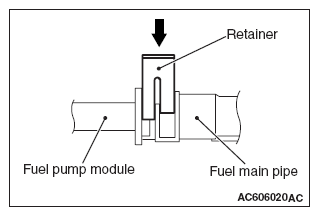

Fig 2: Connecting Connector Of Fuel Main Pipe To Fuel Pump Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
