ASC Off Switch Continuity Check

WARNING: This page is about a different variant/trim than selected.
  1. As shown in the illustration, connect the circuit tester to the ASC OFF switch as a single unit.
  2. Check the continuity of when the ASC OFF switch is pressed and released.

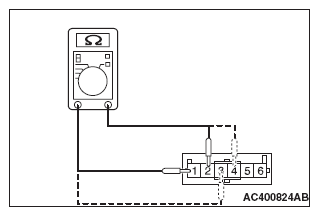

    Fig 1: Checking ASC OFF Switch Continuity
    G09650913Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Item ASC OFF switch is released (not operated) ASC OFF switch is pressed
    Continuity between terminal No. 1 and No. 2 No continuity Continuity exists (2Ω or less)
    Continuity between terminal No. 3 and No. 4 Continuity exists Continuity exists
