Diagnostic Trouble Code Table

WARNING: This page is about a different variant/trim than selected.

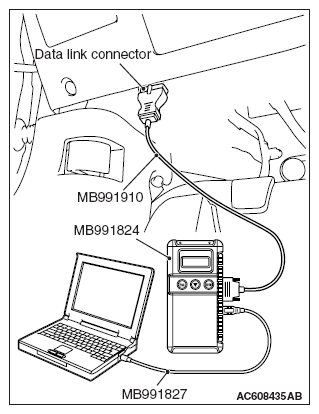

Fig 1: Connecting Scan Tool To Data Link Connector
G09650815Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTCs. If DTC code(s) are set, erase them all.
DIAGNOSTIC TROUBLE CODE TABLE

DTC No. Item
C100A  Abnormality in FL wheel speed sensor circuit
C1015  Abnormality in FR wheel speed sensor circuit
C1020  Abnormality in RL wheel speed sensor circuit
C102B  Abnormality in RR wheel speed sensor circuit
C1011  Abnormality in FL wheel speed sensor signal
C101C  Abnormality in FR wheel speed sensor signal
C1027  Abnormality in RL wheel speed sensor signal
C1032  Abnormality in RR wheel speed sensor signal
C1014  Mutual monitoring of FL wheel speed sensor
C101F  Mutual monitoring of FR wheel speed sensor
C102A  Mutual monitoring of RL wheel speed sensor
C1035  Mutual monitoring of RR wheel speed sensor
C1041  Abnormality in periodical signal for FL wheel speed sensor
C1042  Abnormality in periodical signal for FR wheel speed sensor
C1043  Abnormality in periodical signal for RL wheel speed sensor
C1044  Abnormality in periodical signal for RR wheel speed sensor
C1046  FL wheel speed sensor control phase time exceeded
C1047  FR wheel speed sensor control phase time exceeded
C1048  RL wheel speed sensor control phase time exceeded
C1049  RR wheel speed sensor control phase time exceeded
C104B  Abnormality in FL wheel inlet valve system
C104F  Abnormality in FR wheel inlet valve system
C1053  Abnormality in RL wheel inlet valve system
C1057  Abnormality in RR wheel inlet valve system
C105F  Abnormality in FL wheel outlet valve system
C1063  Abnormality in FR wheel outlet valve system
C1067  Abnormality in RL wheel outlet valve system
C105B  Abnormality in RR wheel outlet valve system
C1200  Abnormality in FL/RR wheel cut valve system
C1204  Abnormality in FR/RL wheel cut valve system
C1208  Abnormality in FL/RR wheel suction valve system
C120C  Abnormality in FR/RL wheel suction valve system
C2104  Faulty valve power supply circuit
C1073  Faulty motor drive circuit
C2116  Abnormality in power supply voltage in pump motor
C121D  Abnormality in brake fluid pressure sensor circuit
C121E  Abnormality in brake fluid pressure sensor output signal
C2000  Abnormality in wheel fluid pressure sensor circuit
C2001  Abnormality in wheel fluid pressure sensor output signal
C1000  Abnormality in stoplight switch circuit
C123B  Prolonged operation of ASC
C2200  Abnormality in ASC-ECU
C2101  Abnormality in battery voltage (high voltage) 18.0 ± 1.0 V or more
C1395  Brake fluid filling not completed
C121C  Torque request signal rejection
C1290  CAN time-out error
C2203  VIN not recorded
C2206  Re-execution of variant coding
C1210  Abnormality in G and yaw rate sensor Abnormality in longitudinal G-sensor output voltage
C1242  Abnormality in G and yaw rate sensor Abnormality in longitudinal G-sensor output signal
C123C  Abnormality in G and yaw rate sensor Abnormality in lateral G and yaw rate output value (incorrect installation)
C2204  Internal abnormality in G and yaw rate sensor Abnormality in internal circuit
Abnormality in lateral G-sensor output voltage
Abnormality in yaw rate sensor output voltage
Abnormality in G and yaw rate sensor supply voltage
C2111  Brake fluid pressure sensor power supply circuit Low input
C2112  Brake fluid pressure sensor power supply circuit High input
C2114  Abnormality in G and yaw rate sensor operation voltage Low voltage (below 6.5 ± 0.5 V)
C2115  Abnormality in G and yaw rate sensor operation voltage High voltage (18.0 ± 1.0 V or more)
C123A  Abnormality in sensor calibration
C1219  Abnormality in steering wheel sensor signal
C121A  Abnormality in steering wheel sensor initialization Steering wheel sensor neutral point not learned
C2205  Internal abnormality in steering wheel sensor
C1608  Implausible diagnosis data
C2002  Abnormality in valve calibration
U0001  Bus-off
U0100  Engine time-out error
U0101 (1) TC-SST time-out error
U0126  Steering wheel sensor time-out error
U0141  ETACS time-out error
U0136  AWC time-out error
U0125  G and yaw rate sensor message time-out error/message error
U0401  Engine malfunction detected
U0428  Communication error in steering wheel sensor
U0251  AWC time-out error Local CAN
U0440  Communication error in AWC Local CAN
U0435  AWC signal abnormality Local CAN
U1003  G and yaw rate sensor bus-off
U1415  Variant coding not completed
U1417  Variant coding value invalid (includes faulty installation)
(1) Only for vehicles with TC-SST
