>> A << Brake Tube Connection

WARNING: This page is about a different variant/trim than selected.

Install the brake pipe to the hydraulic unit as shown in the illustration.

  1. From master cylinder (primary)
  2. To front brake (RH)
  3. To front brake (LH)
  4. From master cylinder (secondary)
  5. To rear brake (LH)
  6. To rear brake (RH)

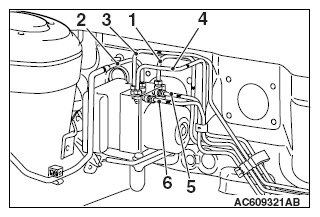

    Fig 1: Brake Tube Connection Tightening Sequence
    G09650916Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
