Can Bus Diagnostics Table

WARNING: This page is about a different variant/trim than selected.

CAUTION: A diagnostic trouble code may not also be stored in the CAN-B lines under the conditions below. If no diagnostic trouble code has been stored due to electrical noise, confirm diagnosis item 26. (Refer to DIAGNOSTIC ITEM 26: SHORT TO POWER SUPPLY OR GROUND, OPEN CIRCUIT OR LINE-TO-LINE SHORT IN THE CAN-B BUS LINES .)

Open circuit at the CAN_H side of the CAN-B bus lines
Open circuit at the CAN_L side of the CAN-B bus line
Short to ground at the CAN_H side of the CAN-B bus line

CAUTION: During diagnosis, a diagnostic trouble code associated with another system may be stored when the ignition switch is turned on with connectors) disconnected. After completing the repair, confirm all systems for diagnostic trouble code(s). If diagnostic trouble code(s) are stored, erase them all.

This diagnosis applies only to the CAN bus lines. If a different system is defective, proceed to the applicable diagnosis information for each system. Observe the diagnosis procedure below only when the CAN bus line is defective.

Comment	Diagnostics detail	Reference

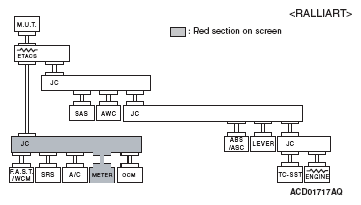

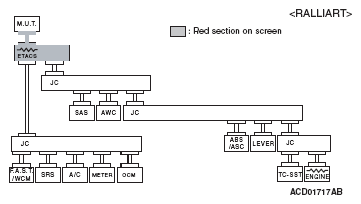

Short circuit to battery in red displayed area is estimated.	Diagnostics Item 1 Diagnose when the scan tool cannot receive the data sent by ETACS-ECU.	DIAGNOSTIC ITEM 1: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ETACS-ECU.

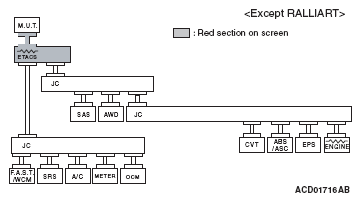

Grounding in red displayed area is estimated.	Diagnostics Item 2 Malfunction of the ETACS-ECU.	DIAGNOSTIC ITEM 2: MALFUNCTION OF THE ETACS-ECU.

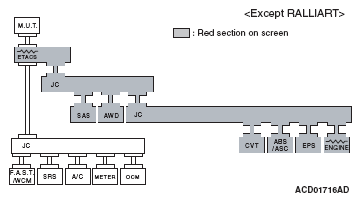

CAN-C: A bus-off failure is present in the gateway ECU.	Diagnostics Item 3 Abnormal short between the CAN-C bus lines.	DIAGNOSTIC ITEM 3: ABNORMAL SHORT BETWEEN THE CAN-C BUS LINES.
CAN-C: Grounding in red displayed area is estimated	Diagnostics Item 4 Diagnose shorts in the ground to CAN-C bus line.	DIAGNOSTIC ITEM 4: DIAGNOSE SHORTS IN THE GROUND TO CAN-C BUS LINE.
CAN-C: Short circuit to battery in red displayed area is estimated	Diagnostics Item 5 Diagnose shorts in the power supply to CAN-C bus line.	DIAGNOSTIC ITEM 5: DIAGNOSE SHORTS IN THE POWER SUPPLY TO CAN-C BUS LINE.

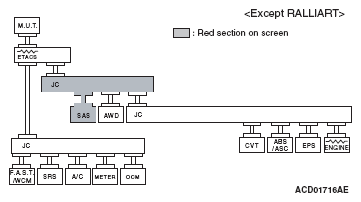

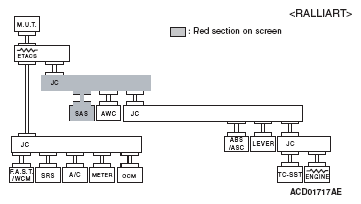

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 6 Diagnose when the scan tool cannot receive the data sent by steering wheel sensor.	DIAGNOSTIC ITEM 6: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY STEERING WHEEL SENSOR.

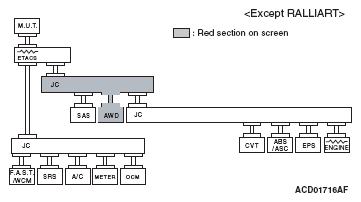

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 7 Diagnose when the M.U.T.-III cannot receive the data sent by AWD-ECU < Electric controlled AWD >.	DIAGNOSTIC ITEM 7: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY AWD-ECU < ELECTRONIC CONTROLLED AWD >.

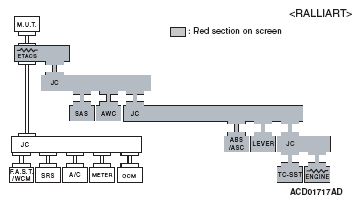

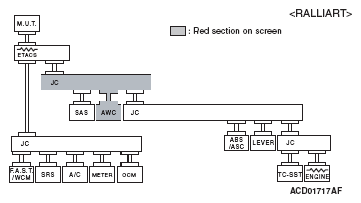

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 8 Diagnose when the scan tool cannot receive the data sent by AWC-ECU < RALLIART >.	DIAGNOSTIC ITEM 8: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY AWC-ECU < RALLIART >.

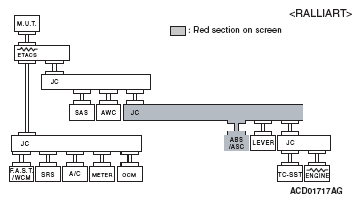

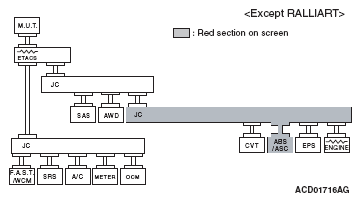

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 9 Diagnose when the scan tool cannot receive the data sent by ABS-ECU < vehicles without ASC > or ASC-ECU < vehicles with ASC >.	DIAGNOSTIC ITEM 9: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ABS-ECU < VEHICLES WITHOUT ASC > OR ASC-ECU < VEHICLES WITH ASC >.

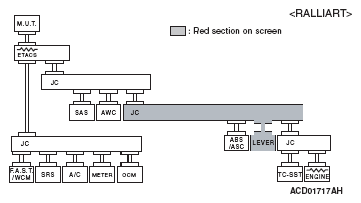

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 10 Diagnose when the scan tool cannot receive the data sent by shift lever < RALLIART >.	DIAGNOSTIC ITEM 10: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY SHIFT LEVER < RALLIART >.

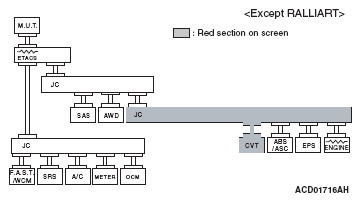

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 11 Diagnose when the scan tool cannot receive the data sent by TCM < CVT >.	DIAGNOSTIC ITEM 11: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY TCM < CVT >.

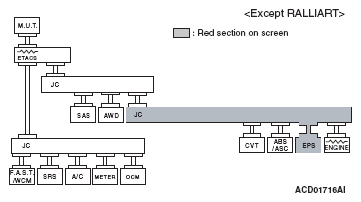

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 12 Diagnose when the scan tool cannot receive the data sent by electric power steering-ECU < vehicles with electric power steering >.	DIAGNOSTIC ITEM 12: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ELECTRIC POWER STEERING-ECU < VEHICLES WITH ELECTRIC POWER STEERING >.

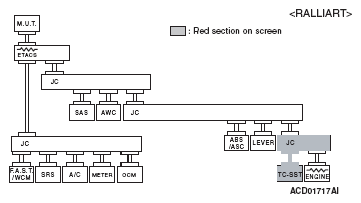

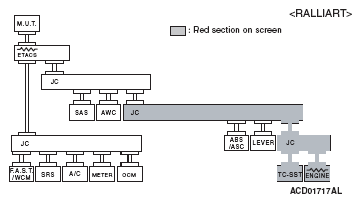

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 13 Diagnose when the scan tool cannot receive the data sent by transaxle assembly (TC-SST-ECU) < RALLIART >.	DIAGNOSTIC ITEM 13: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY TRANSAXLE ASSEMBLY (TC-SST-ECU) < RALLIART >.

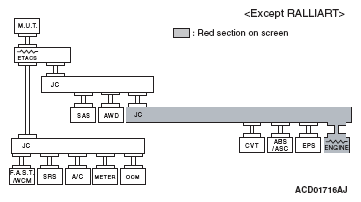

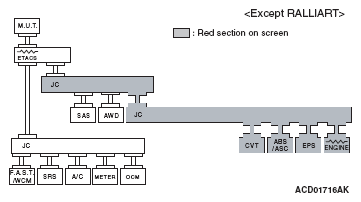

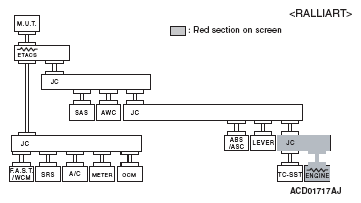

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 14 Diagnose when the scan tool cannot receive the data sent by ECM.	DIAGNOSTIC ITEM 14: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ECM.

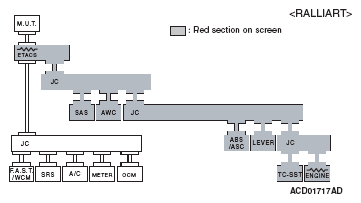

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 15 Diagnose the lines between the ETACS-ECU and joint connector (CAN2).	DIAGNOSTIC ITEM 15: DIAGNOSE THE LINES BETWEEN THE ETACS-ECU AND JOINT CONNECTOR (CAN2).
CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 16 Diagnose the lines between joint connector (CAN2) and joint connector (CAN3).	DIAGNOSTIC ITEM 16: DIAGNOSE THE LINES BETWEEN JOINT CONNECTOR (CAN2) AND JOINT CONNECTOR (CAN3).

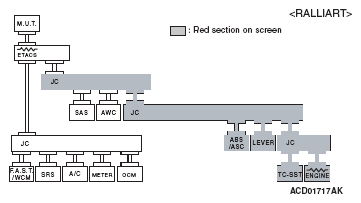

CAN-C: Disconnection in red displayed area is estimated.	Diagnostics Item 17 Diagnose the lines between joint connector (CAN3) and joint connector (CAN4) < RALLIART >.	DIAGNOSTIC ITEM 17: DIAGNOSE THE LINES BETWEEN JOINT CONNECTOR (CAN3) AND JOINT CONNECTOR (CAN4) < RALLIART >.
CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 18 Diagnose when the scan tool cannot receive the data sent by KOS-ECU < vehicles with KOS >.	DIAGNOSTIC ITEM 18: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY KOS-ECU < VEHICLES WITH KOS >.

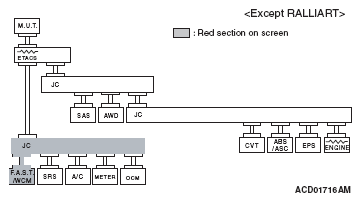

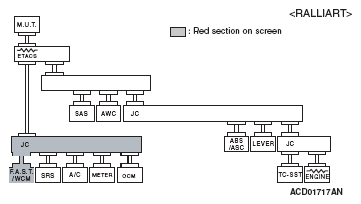

CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 19 Diagnose when the scan tool cannot receive the data sent by WCM < vehicles without KOS >.	DIAGNOSTIC ITEM 19: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY WCM < VEHICLES WITH WCM >.

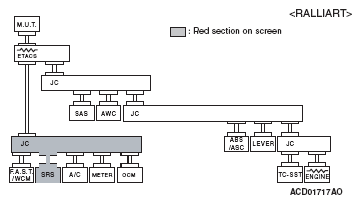

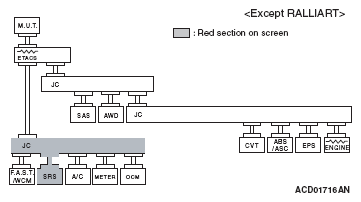

CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 20 Diagnose when the scan tool cannot receive the data sent by SRS-ECU.	DIAGNOSTIC ITEM 20: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY SRS-ECU.

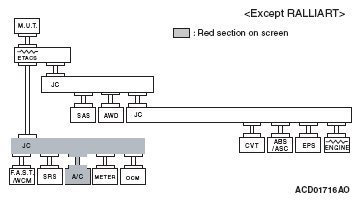

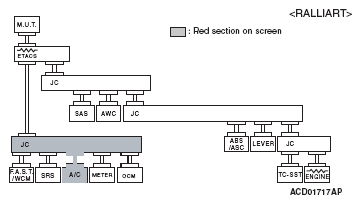

CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 21 Diagnose when the scan tool cannot receive the data sent by A/C control panel < vehicles with A/C > or heater control panel < vehicles without A/C >.	DIAGNOSTIC ITEM 21: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY A/C CONTROL PANEL < VEHICLES WITH A/C > OR HEATER CONTROL PANEL < VEHICLES WITHOUT A/C >.

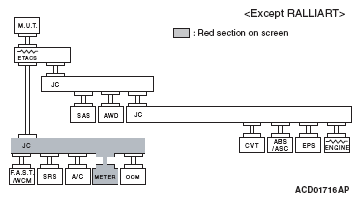

CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 22 Diagnose when the scan tool cannot receive the data sent by combination meter.	DIAGNOSTIC ITEM 22: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY COMBINATION METER.

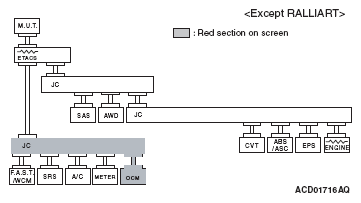

CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 23 Diagnose when the scan tool cannot receive the data sent by occupant classification-ECU.	DIAGNOSTIC ITEM 23: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY OCCUPANT CLASSIFICATION-ECU.
CAN-B: A failure in the red section, or a bus-off failure is present in the gateway ECU.	Diagnostics Item 24 Short to power supply or ground in both CAN_H and CAN_L lines.	DIAGNOSTIC ITEM 24: SHORT TO POWER SUPPLY OR GROUND IN BOTH CAN_H and CAN_L lines.

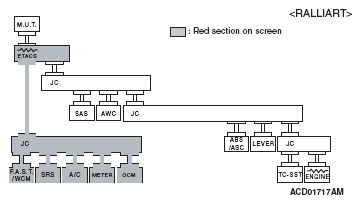

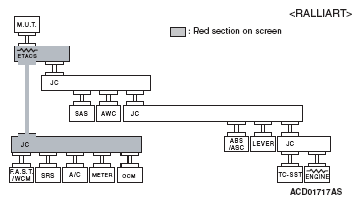

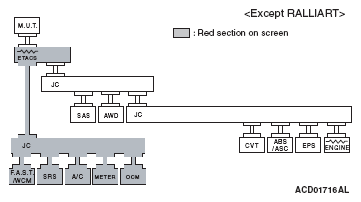

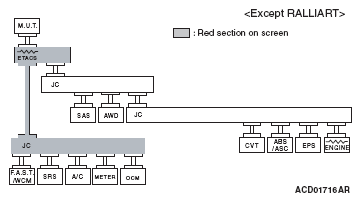

CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 25 Diagnose the ETACS-ECU, joint connector (CAN1) or lines between ETACS-ECU and joint connector (CAN1).	DIAGNOSTIC ITEM 25: DIAGNOSE THE ETACS-ECU, JOINT CONNECTOR (CAN1) OR LINES BETWEEN ETACS-ECU AND JOINT CONNECTOR (CAN1).
CAN-B: Disconnection in red displayed area is estimated.	Diagnostics Item 26 Short to power supply or ground, open circuit or line-to-line short in the CAN-B bus lines.	DIAGNOSTIC ITEM 26: SHORT TO POWER SUPPLY OR GROUND, OPEN CIRCUIT OR LINE-TO-LINE SHORT IN THE CAN-B BUS LINES.
