- A gateway function has been integrated to ETACS-ECU as the network central ECU.
- The CAN system consists of the following three networks: CAN-B (middle-speed body network), CAN-C (high-speed power train network), and the diagnosis CAN-C (diagnosis exclusive network). Each ECU is connected to one of the networks depending on its functions.
- The CAN bus line consists of two lines, CAN_L and CAN_H (CAN Low and CAN High, respectively), as well as two terminal resistors (A twisted-pair cable, highly resistant to noise, is used for the communications line).
- The CAN bus line connecting two dominant ECUs is the main bus line, and the CAN bus line connecting each ECU is the sub-bus line.
- With CAN-C, the terminal resistors are incorporated in ECU. Resistors with approximately 120 ohms is used for the dominant ECU, and that with 3.0 kΩ is used for the non-dominant ECU.NOTE:
- Dominant ECU: ETACS-ECU and engine ECU
- Non-dominant ECU: ECU and sensor on CAN-C network, excluding ETACS-ECU and engine ECU

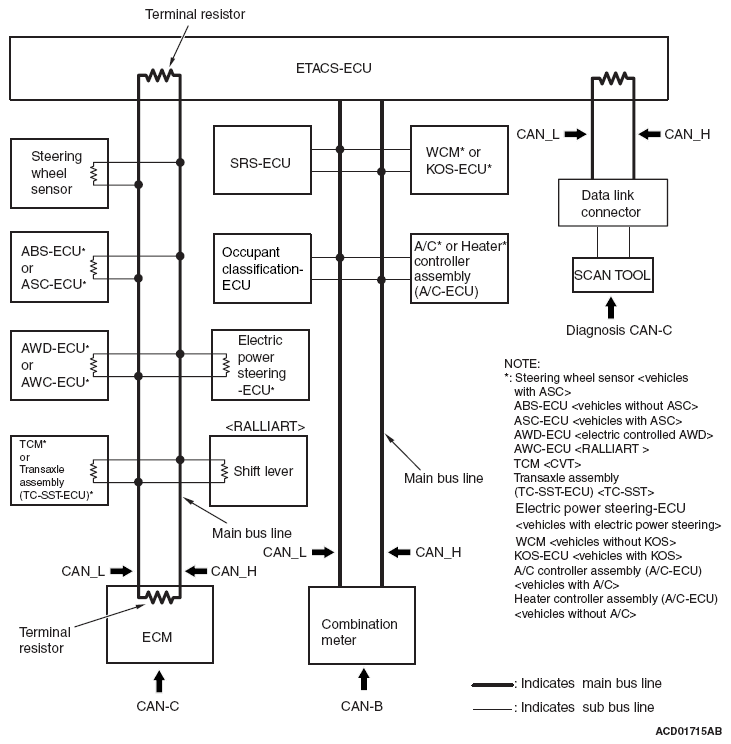

- To the CAN bus line, ECU, sensor, and data link connector are connected as follows for each network.
CAN-B
- Wireless control module (WCM) < vehicles without KOS >
- KOS-ECU < vehicles with KOS >
- SRS-ECU
- Occupant classification-ECU
- A/C control panel < vehicles with A/C >
- Heater control panel < vehicles without A/C >
- Combination meter
CAN-C
- ABS-ECU < vehicles without ASC >
- ASC-ECU < vehicles with ASC >
- Electric power steering-ECU < vehicles with electric power steering >
- Steering wheel sensor < vehicles with ASC >
- AWD-ECU < Electric controlled AWD >
- AWC-ECU < RALLIART >
- Transaxle control module (TCM) < CVT >
- Transaxle assembly (TC-SST-ECU) < RALLIART >
- Shift lever < RALLIART >
- Engine control module (ECM)
DIAGNOSIS CAN-C
- Data link connector
