Lubrication Points

WARNING: This page is about a different variant/trim than selected.

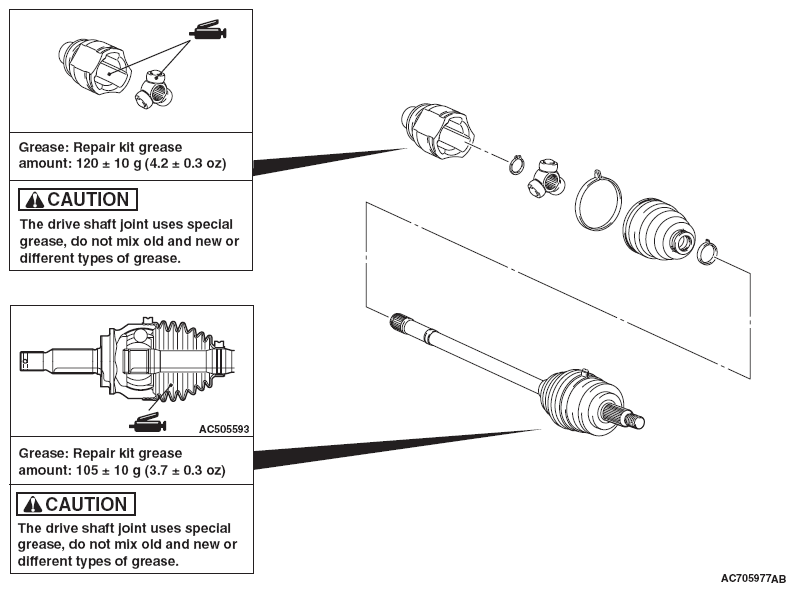

Fig 1: Driveshaft Joint Lubrication Points
G09650544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
