>> A << Output Shaft Assembly/Front Driveshaft Assembly Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:

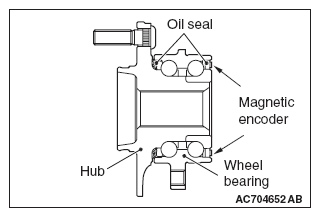

- The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
- When installing the front driveshaft, make sure that it does not contact with the magnetic encoder (integrated with the inner oil seal) to avoid damage.
- Care must be taken to ensure that the oil seal of the transaxle is not damaged by the spline part of the output shaft assembly or front driveshaft assembly.
