<< C >> Front Brake Disc Removal
WARNING: This page is about a different variant/trim than selected.

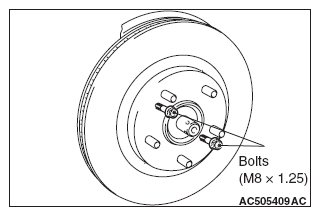

If the front brake disc removal is difficult, install bolts (M8 x 1.25) shown in the illustration, and tighten them evenly and gradually to remove the front brake disc.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
