Hub Bolt Replacement

Required Special Tools:

• MB990767: Front Hub and Flange Yoke Holder
• MB991618: Hub Bolt Remover

1. Remove the front caliper assembly and front disk brake, and retain the front caliper assembly with a wire and the like to prevent from falling (Refer to REMOVAL AND INSTALLATION  ).
2. Use special tool MB991618 to remove the hub bolts.
   Fig 1: Removing Hub Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
4. Install the front brake disk and the front caliper assembly (Refer to REMOVAL AND INSTALLATION  ).

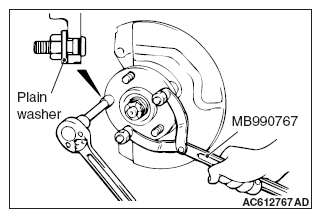

   Fig 2: Installing Hub Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
