>> A << Vacuum Hose Installation

WARNING: This page is about a different variant/trim than selected.

Align the mark as shown in the illustration to assemble the vacuum hose.

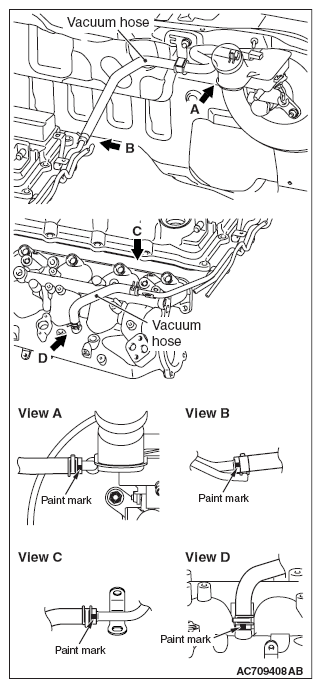

Fig 1: Vacuum Hose Alignment Marks

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
