>> A << Engine Assembly/Engine Mounting Bracket Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set special tool MB991454 and a chain block to the engine assembly.
  2. Install the engine assembly, being careful not to pinch the cables, hoses or wiring harness connectors.
  3. Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mounting bracket while adjusting the position of the engine.
  4. Remove the chain block.

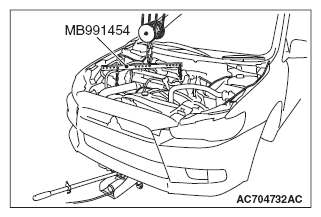

    Fig 1: Holding Engine Assembly Using Chain Block
    G09639784Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Install special tool MB991928 or MB991895 which is used during installation of transaxle assembly to hold the engine assembly. (Refer to TRANSAXLE ASSEMBLY < M/T >), (Refer to TRANSFER ASSEMBLY < TC-SST >)

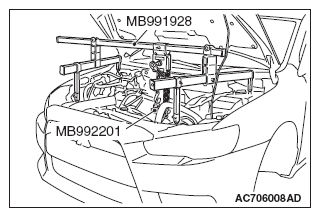

    Fig 2: Engine Support Assembly Installed (1 Of 2)
    G09639785Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

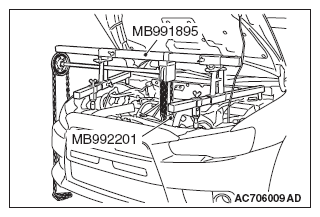

    Fig 3: Engine Support Assembly Installed (2 Of 2)
    G09639786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
