<< B >> Engine And Transaxle Assembly Holding

Install a special tool for holding the engine and transaxle assembly.

1. < Engine hanger MB991928 is used >
   1. Assemble the engine hanger (special tool MB991928). Set the following parts on the base hanger.
      • Slide bracket (HI)
      • Foot x 4 (standard) (MB991932)
      • Joint x 2 (140) (MB991931)
   2. Set the foot of the special tool as shown in the illustration.
      NOTE: Slide the slide bracket (HI) to adjust the engine hanger balance.

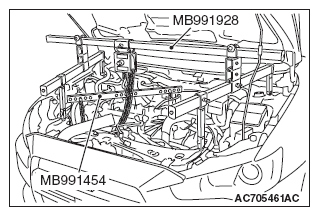

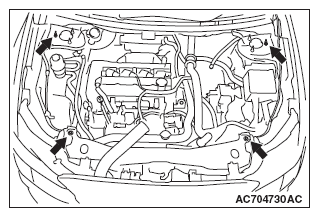

      Fig 1: Special Tool Foot Locations

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   3. Mount special tool MB991454 to the power steering oil pump bracket and the engine hanger, and set it to special tool MB991928 to support the engine and transaxle assembly.

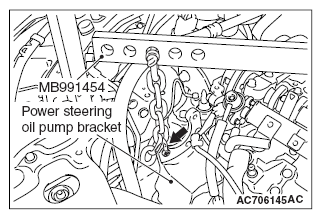

      Fig 2: Engine Hanger Mounting On Power Steering Oil Pump Bracket

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 3: Engine Hanger Bracket Mounting

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. < Engine hanger MB991895 is used >
   1. Set the foot of special tool MB991895 as shown in the illustration.
      NOTE: Slide the foot to adjust the engine hanger balance.

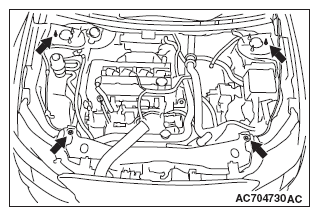

      Fig 4: Special Tool Foot Locations

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   2. Mount special tool MB991454 to the power steering oil pump bracket and the engine hanger, and set it to special tool MB991895 to support the engine and transaxle assembly.

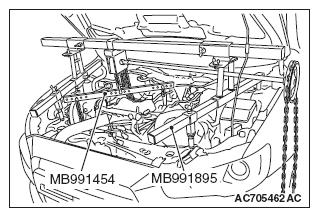

      Fig 5: Engine Hanger Mounting On Power Steering Oil Pump Bracket

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 6: Engine Hanger Bracket Mounting

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
