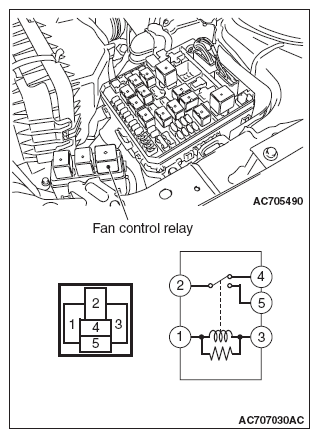

Fan Control Relay Check
WARNING: This page is about a different variant/trim than selected.
| Battery voltage |
Terminal No. to be connected to tester |
Continuity test results |
| Not applied |
2 - 4 |
Continuity (Less than 2 ohms) |
| 2 - 5 |
Open circuit |
Connect terminal No. 1 and battery (+) terminal.
Connect terminal No. 3 and battery (-) terminal. |
2 - 5 |
Continuity (Less than 2 ohms) |
| 2 - 4 |
Open circuit |
