>> D << Turbocharger And Pipe Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Make sure the identification hole is properly in position as shown in the illustration, and then install the coned disc spring in the appropriate installation direction.
Tighten the bolts and nuts to the specified torque.
Specified torque: 29 ± 2 N.m (21 ± 1 ft-lb)

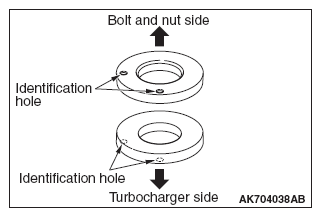

Fig 1: Turbocharger And Pipe Assembly Washer Identification Holes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use special tool MB991614 to tighten bolts and nuts 65° ± 5°.
CAUTION:
- When the tightening angle is smaller than the specified tightening angle, the appropriate tightening capacity cannot be secured.
- When the tightening angle is larger than the specified tightening angle, remove the bolt and nut to start from the beginning again according to the procedure.

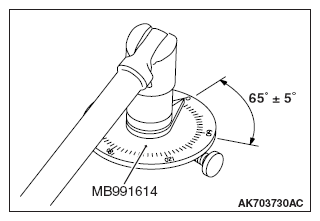

Fig 2: Tightening Bolts And Nuts Using Special Tool
