>> A << Spark Plugs Installation

WARNING: This page is about a different variant/trim than selected.

Using special tool MB991398, tighten the spark plug to the specified torque.

Specified torque: 18 ± 2 N.m (13 ± 1 ft-lb)

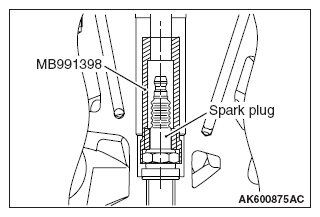

Fig 1: Installing Spark Plug Using Special Tool
G09639808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
