Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

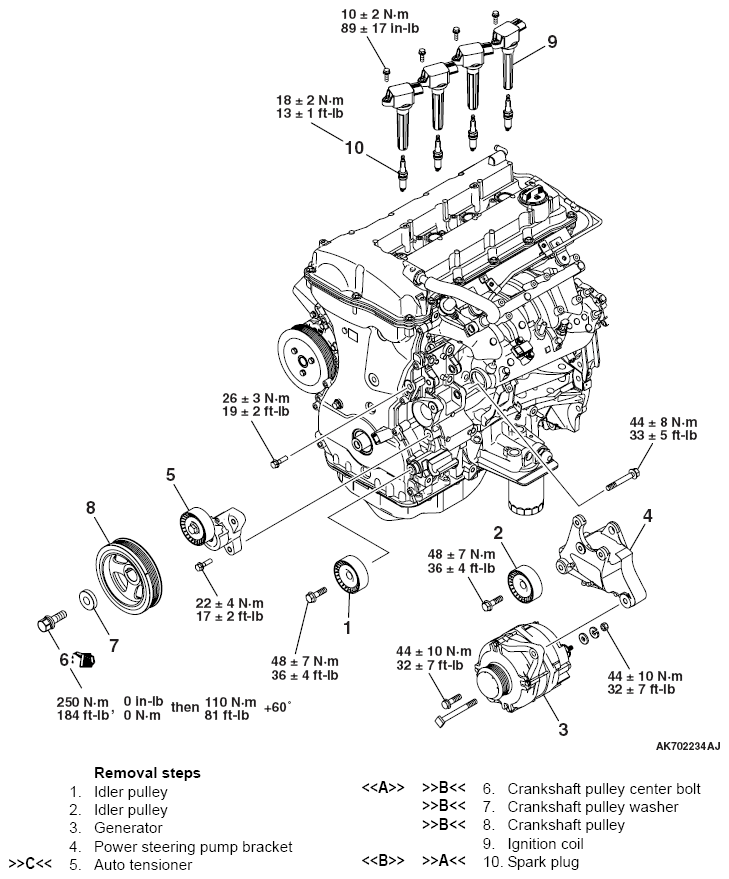

Fig 1: Removing/Installing Generator And Ignition System Components With Torque Specifications
G09639804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
