<< B >> Spark Plug Removal

WARNING: This page is about a different variant/trim than selected.

Using special tool MB991398, removal the spark plug.

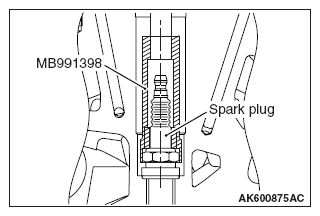

Fig 1: Removing Spark Plug Using Special Tool
G09639807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
