>> A << Engine Oil Pressure Switch Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not allow sealant to squeeze out to the screw tip.
  • Do not exceed the specified torque.
  1. Completely remove sealant adhering to the engine oil pressure switch and cylinder block threaded holes.
  2. Apply sealant (Three bond 1215, Three bond 1212D or equivalent) of 5 mm (0.2 inch) to the threaded portion of the engine oil pressure switch shown in the illustration.
  3. Tighten the engine oil pressure switch to the cylinder block to the specified torque.

    Specified torque: 10 ± 2 N.m (89 ± 17 in-lb)

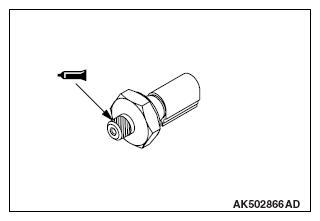

    Fig 1: Sealant Applying To Threaded Portion Of Engine Oil Pressure Switch
    G09639818Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
