>> B << Knock Sensor Installation

WARNING: This page is about a different variant/trim than selected.

Align the knock sensor connector with the position shown in the illustration, and then tighten it to the specified torque.

Specified torque: 20 ± 2 N.m (15 ± 1 ft-lb)

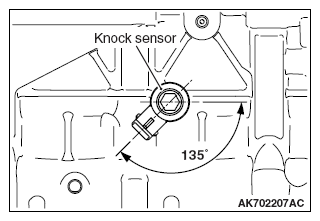

Fig 1: Installing Knock Sensor
G09639819Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
