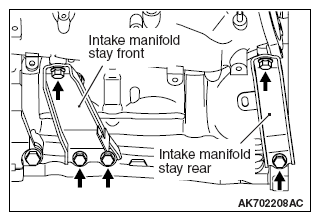

>> C << Intake Manifold Stay Installation
WARNING: This page is about a different variant/trim than selected.
Make sure that the intake manifold stay is in intimate contact with the intake manifold and cylinder block boss before tightening it to the specified torque.
Specified torque: 23 ± 6 N.m (17 ± 4 ft-lb)
