>> D << O-Ring Installation

When inserting an O-ring into the injector on the injection nozzle side, use special tool MB992106 to gradually expand the O-ring, and fit it in place.

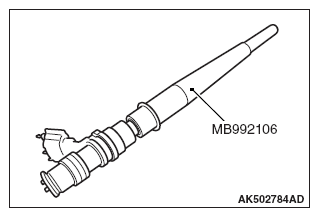

Fig 1: Installing O-Ring Into Injector Using Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
