>> E << Connecting Rod Bearing Installation

WARNING: This page is about a different variant/trim than selected.

When replacing a connecting rod bearing, select the bearing corresponding to the crankshaft pin outside diameter according to the crankshaft pin identification in the table below.

Crankshaft pin		Connecting rod bearing
Identification mark	Journal diameter mm (in)	Identification color
1	51.966 - 51.972 (2.0459 - 2.0461)	Black
2	51.960 - 51.966 (2.0457 - 2.0459)	None
3	51.954 - 51.960 (2.0454 - 2.0457)	Green

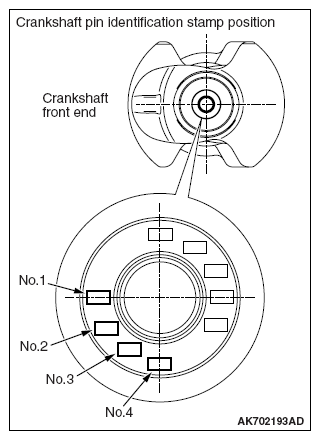

An identification mark of a crankshaft is stamped at the illustrated position by No.

Fig 1: Crankshaft Pin Identification Stamp
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

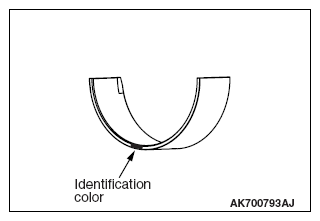

A connecting rod bearings an identification color at the illustrated position.

Fig 2: Connecting Rod Bearings Identification Color
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
