>> F << Connecting Rod Cap Installation

WARNING: This page is about a different variant/trim than selected.

Assemble the bearing cap on the connecting rod by aligning it with the mark put during removal. If a new connecting rod without a mating mark is used, assemble so that the detent notch of the bearing is on the same side as illustrated.

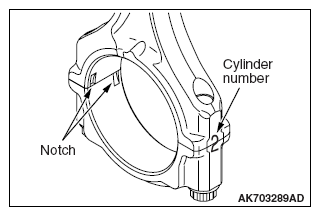

Fig 1: Cylinder Number & Notch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Make sure that clearance of the thrust of the connecting rod big end is appropriate.
Standard value: 0.10 - 0.25 mm (0.004 - 0.010 inch)

Limit: 0.4 mm (0.02 inch)

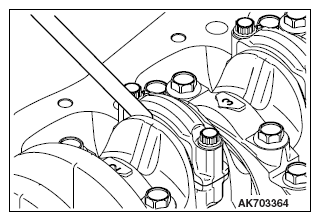

Fig 2: Checking Clearance Of Thrust Of Connecting Rod Big End
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
