Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

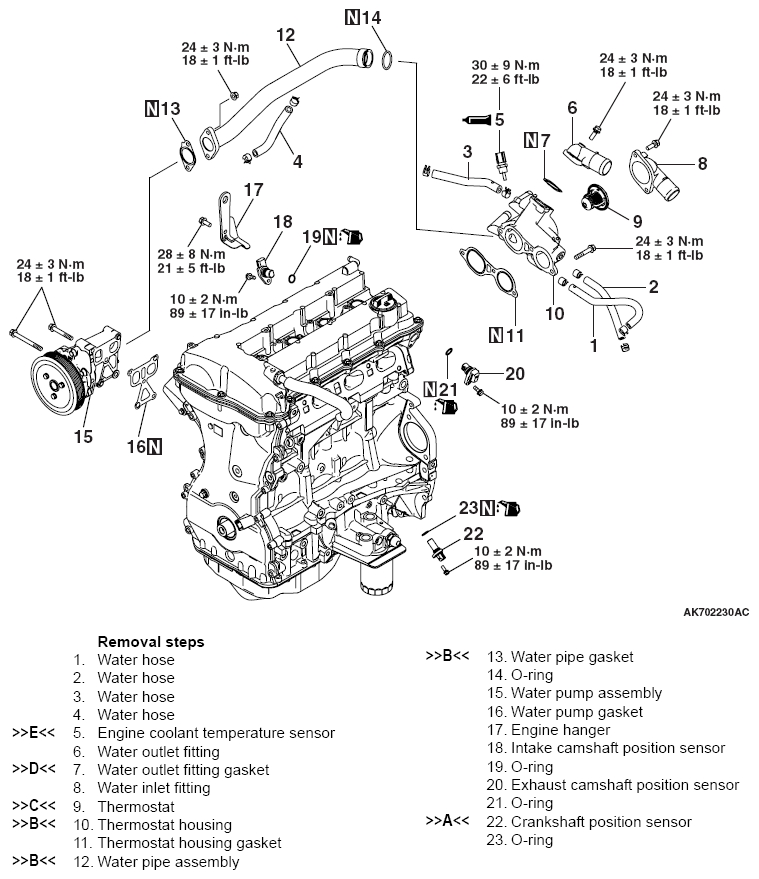

Fig 1: Removing/Installing Water Hose And Pipe Components With Torque Specifications
G09639834Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
