<< A >> Magnetic Switch Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not clamp the yoke assembly with a vise.

Disconnect the lead from the M terminal of the magnetic switch.

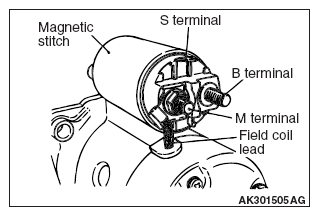

Fig 1: Magnetic Switch, Terminals And Field Coil Lead
G09641021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
