Brake Pad Check

WARNING: This page is about a different variant/trim than selected.

CAUTION: If there is a significant difference in thickness between the brake pads at right and left, check the sliding area and the run-out of the brake disc (Refer to LUBRICATION POINT BRAKE DISC CHECK ).

Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value: 10.0 mm (0.39 inch)

Limit: 2.0 mm (0.08 inch)
If the brake pad thickness is less than the limit value, replace the brake pad (Refer to BRAKE PAD REPLACEMENT < EXCEPT RALLIART > < Except RALLIART > or LUBRICATION POINT BRAKE PAD REPLACEMENT < RALLIART > < RALLIART >).

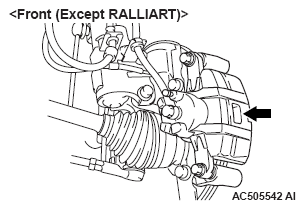

Fig 1: Locating Brake Pad Thickness Inspection Hole (Except RALLIART)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

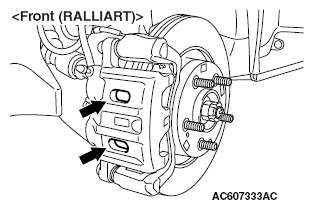

Fig 2: Locating Brake Pad Thickness Inspection Hole - Front (RALLIART)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

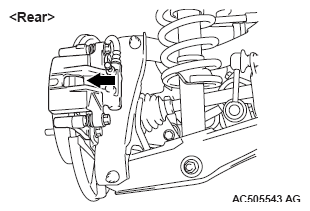

Fig 3: Locating Brake Pad Thickness Inspection Hole - Rear (RALLIART)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
