Section 43 (Basic Brake System - Lancer)
>>
Rear Disc Brake Assembly
>>
Removal And Installation < Except RALLIART >
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Removal And Installation < Except RALLIART >
WARNING:
This page is about a different variant/trim than selected.

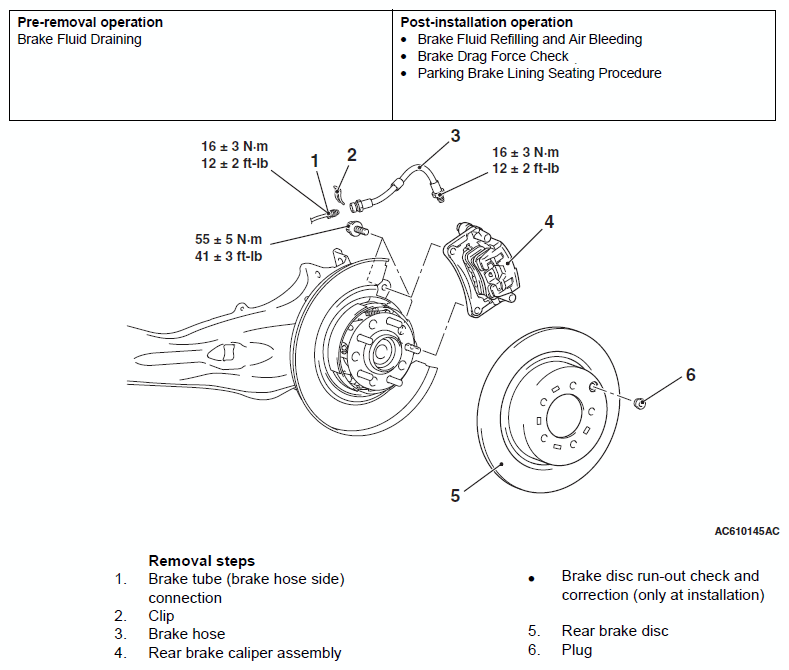

Fig 1: Removing/Installing Rear Disc Brake Assembly Bolts With Torque Specifications (Except RALLIART)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
