Removal And Installation < RALLIART >

WARNING: This page is about a different variant/trim than selected.

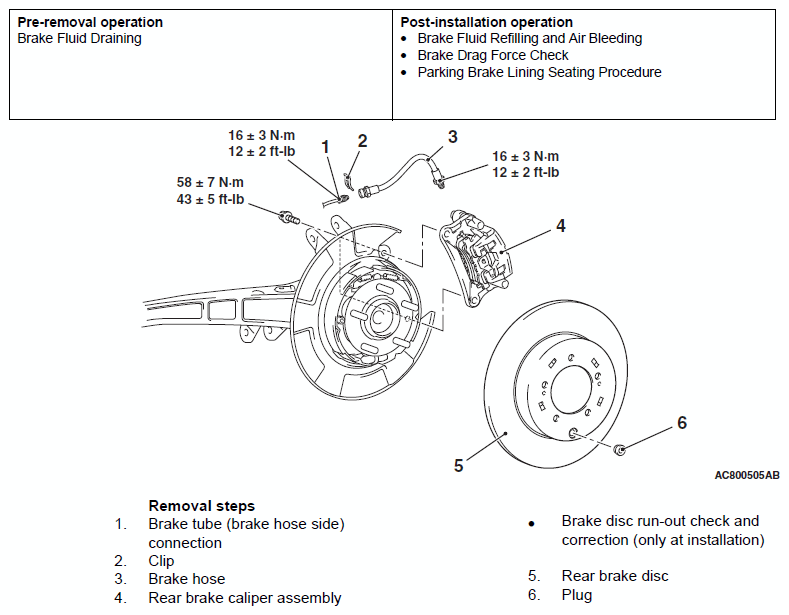

Fig 1: Removing/Installing Rear Disc Brake Assembly Bolts With Torque Specifications (RALLIART)
G09627039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
